Sinotruk HOWO 4X2 6X4 8X4 371HP 420HP Boom Mounted Crane Truck

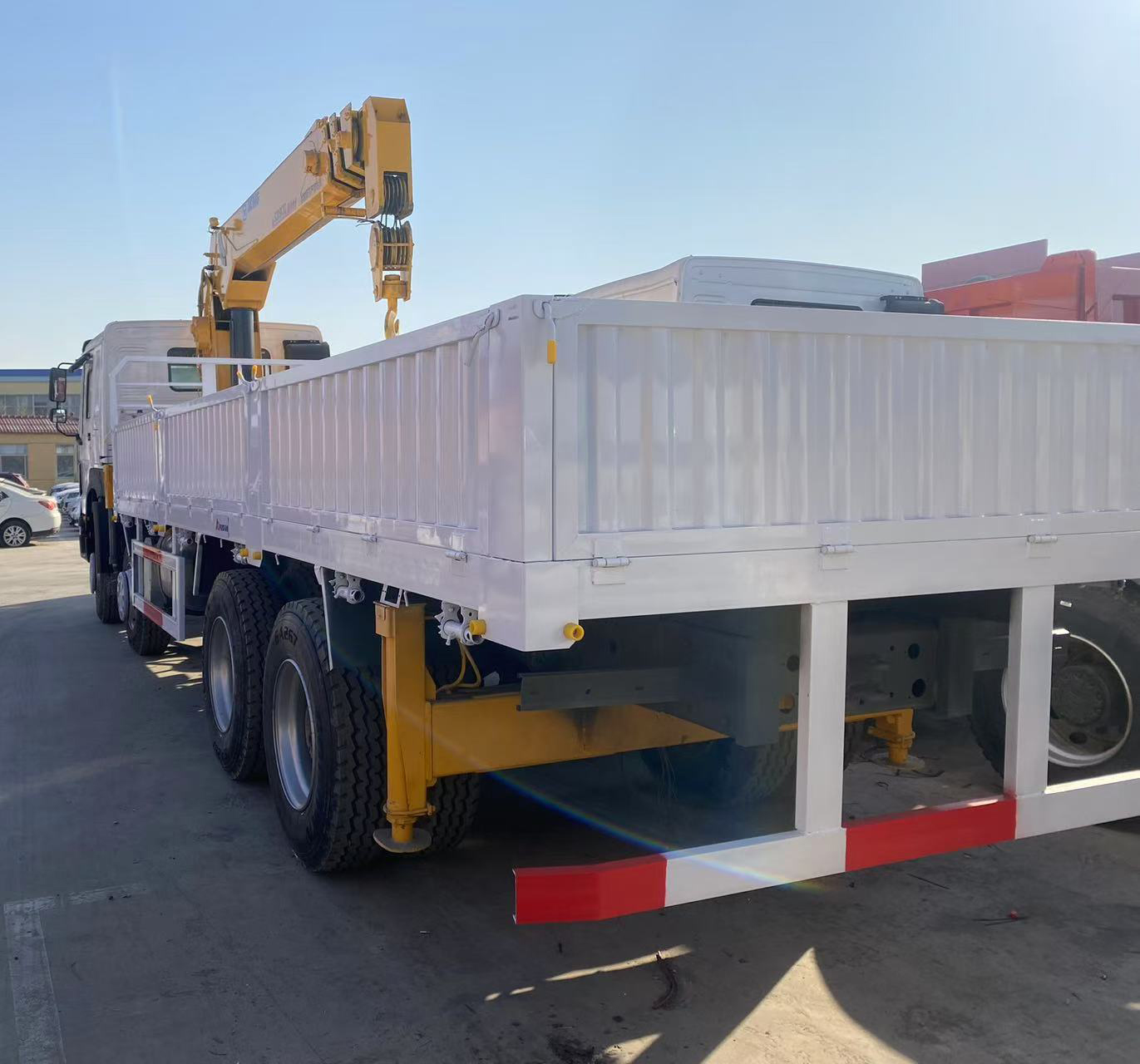

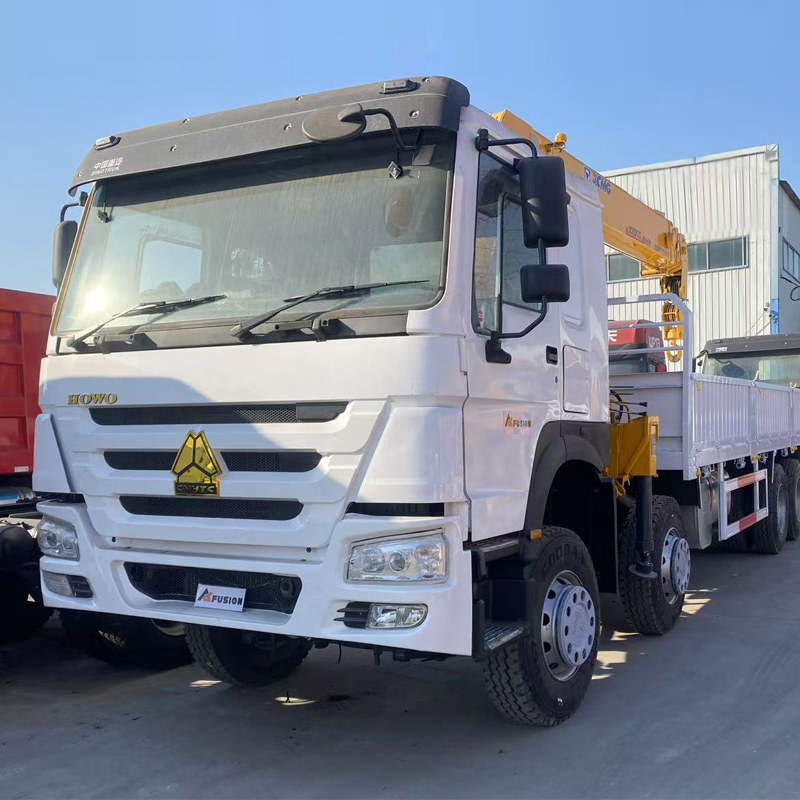

SINOTRUK HOWO 8x4 Truck With Crane

Chassis Model

ZZ1317N4667B1(Left/ Right Hand Driving Type Optional)

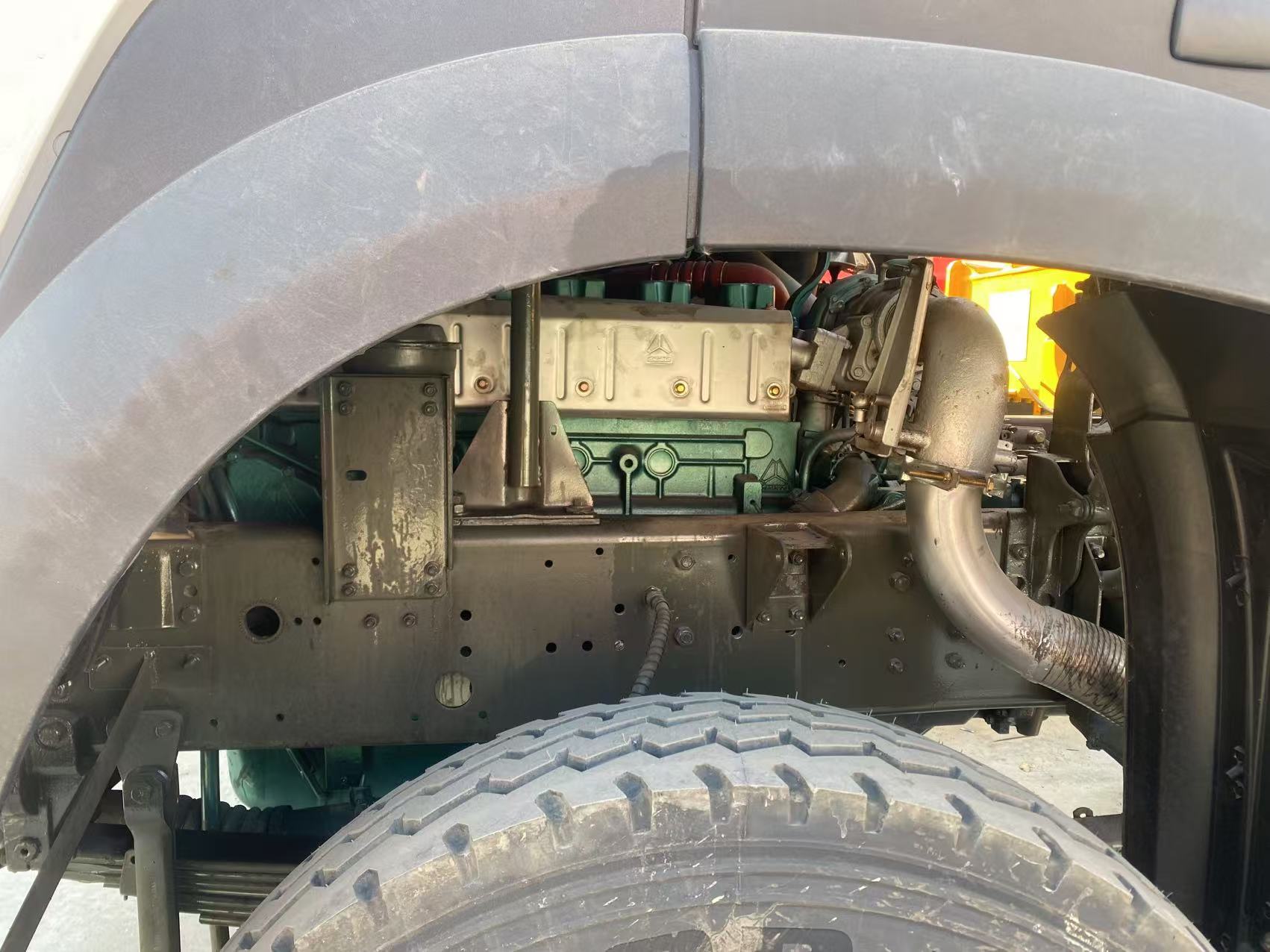

Engine

Model: WD615.47, Euro II, 371HP
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 9.726 L

Clutch

Single-plate dry diaphragm spring clutch, diameter 430mm,hydraulically operating with air assistance

Gearbox

SINOTRUK BRAND, manual operation, HW19710, 10 forward and 2 reverse, with Power Take-Off (PTO)

Front Axles

VGD95, 9500kg with drum brake system

Rear Axles

HC16, 2X16000kg, double stage reduction (central+ hub), cast axle housing, ratio: 5.73

Suspension

Front suspension: 10 pcs leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension: 12 pcs leaf springs with bogie spring and stabilizer

Steering System

power steering, hydraulic steering with power assistance

Braking System

Front drum rear drum brake, four-circuit protection valve
Service brake: dual circuit compressed air brake
Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake (optional): engine exhaust brake(EVB), antilock brake system (ABS), automatic brake gap adjustment arms

Tires

12.00R20 (12.00R22.5, 315/80R22.5 optional), with one spare tyre

Fuel Tank Volume (L)

400

Dead Weight

7900

Gross Vehicle Weight (kg)

16000

Rated Loading Weight (kg)

8100

Overall Dimension
(LxWxH) (mm)

10500x2550x3500

Wheelbase (mm)

1500+4200+1350

Min.Ground Clearance (mm)

314

Approach/Depart Angle(°)

19/ (27/65)

Gradeability (%)

≥50

Min. Turning Diameter (m)

15

Cargo Body Size (LxWxH) (mm)

6500x2300x600

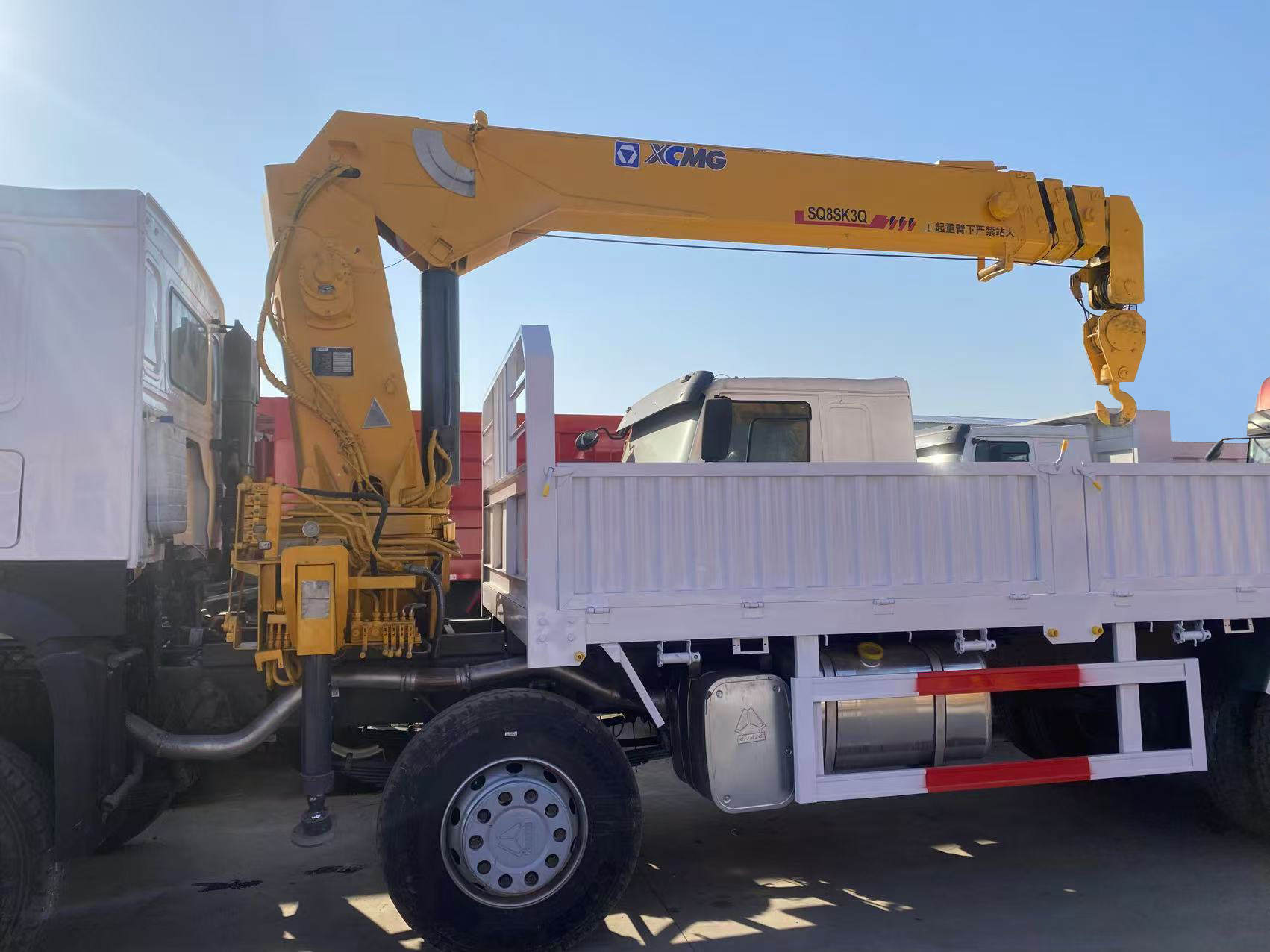

Max lifting capacity of the crane

1/2/3/4/5/6.3/8/10/12

Remark (Engine Power Option)

266;336HP; 371HP
